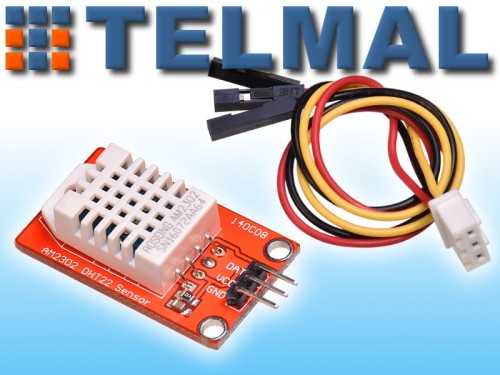

DHT22 AM2302 Digital Temperature & Humidity Sensor Module for DIY Arduino

DHT22 AM2302 Digital Temperature & Humidity Sensor Module for DIY Arduino SCM

AM2302 humidity-sensitive capacitance digital temperature and humidity module is a have already calibrated digital composite signal output of the temperature and humidity sensor.

Specification:
1. Voltage: 5V
2. Temperature range: -40~80°C +/-0.5°C
3. Humidity range: 20-90%RH +/- 2%RH
4. Size: approx. 3.9 x 2.2cm

Features:
1. It dedicated digital module acquisition technology and the temperature and humidity sensor technology, ensure that the product has a very high reliability and excellent long-term stability.
2. Includes a capacitive moisture sensor element and a high precision temperature measuring element, and connected to a high-performance 8-bit microcontroller.
3. Super fast response, strong anti-interference ability, extremely high performance-price ratio.
4. Every sensor in extremely precise humidity calibration laboratory calibration.
5. Calibration coefficient in the form of a program stored in the microcontroller, sensors inside in the process of detecting signal processing to invoke the calibration coefficient.
6. Standard single bus interface, make the system integration becomes simple and fast.
7. Super small volume, low power consumption, signal transmission distance of 20 meters, making it a all kinds of application of the best choice for even the most demanding applications.
8. Products for 3 fuses (single bus interface) connection is convenient.

Application:
Hvac, dehumidifier, test and inspection equipment, consumer goods, automotive, automatic control, data recorder, household appliances, humidity regulator, medical treatment, weather stations, and other relative humidity control and so on.

Package included:
1 x digital temperature and humidity module
1 x wires

SKU: 04343
Weight: 0,010 kg
