W1215 Digital Thermostat 12V + Probe NTC 10K Temperature Controller
Description

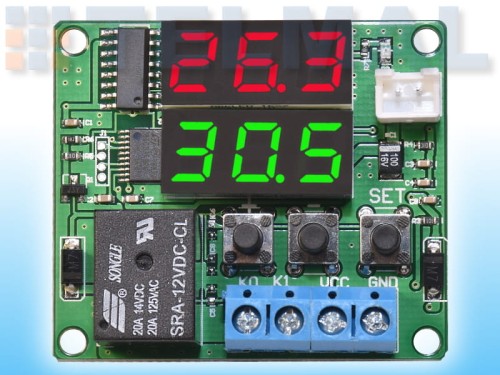

Digital Thermostat W1215 12V Adjustable -20°C to 100°C
+ Waterproof Sensor NTC 10K / 25°C (Cable Length 80cm)
The module integrated thermostat which allows you to control the receiver is connected contactor relay, depending on the set parameters.
voltage (12V connector VCC and GND)
temperature range: -20°C to 100°C
resolution display: 0.1°C
output load: max 2300W 20A / 12VDC 10A / 230VAC
waterproof probe NTC 10K / 25°C
relay outputs: connectors K0 and K1
display red top - current temperature
display green bottom - activation temperature
Programming mode: P0-P5
P0 - refrigeration / heating
P1 - return difference setting
P2 - temperature correction
P3 - set running time
P4 - delay start time
P5 - data lock
SKU: 04363
Weight: 0,025 kg
Package contains:
1x Thermostat W1215
1x Sensor NTC 10K / 25°C (length aprox. 80cm)
