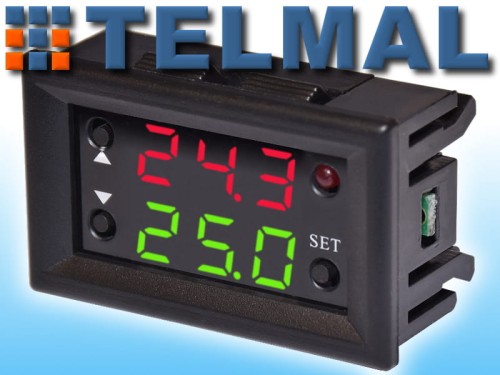

W1220 Digital Thermostat 12V + NTC Probe Temperature Controller 6-Mode
Availability:
brak towaru
Description
W1220 Digital Thermostat 12V Temperature Controller with NTC Probe
Operating temperature: -20°C to 100°C
Operating voltage: 12V DC
Measurement accuracy: 0.1°C
Control accuracy: 0.1°C
Return difference accuracy: 0.1°C
Refresh rate: 0.5s
Measuring input: NTC (10K 0.5%) length 0.8 meter, waterproof sensor
Output: 1 way 10A /250VAC 20A/14VDC relay
Humidity: 20% to 85%
Power consumption: =< 35mA (static), =< 65mA (relay close)
Module size: 47 x 29 x 33mm
Red digits - current temperature
Green digits - programmed temperature
Programming mode: P0-P5
P0 - refrigeration / heating
P1 - return difference setting
P2 - temperature correction
P3 - set running time
P4 - delay start time
P5 - data lock
SKU: 04419
Weight: 0,035 kg
